Oh right, we've been talking about templates...

In fact, we've actually been using templates without knowing much about them!

When we've used a stack of ints from the STL stack, we've said something like stack<int> si;

The standard template library is a template-driven code base with 4 main components: containers, iterators, algorithms, and functors.

We'll see examples of each of those momentarily!

The impetus for the STL was that programmers witnessed commonalities in many of their data structures and algorithms that differed only in the types they were using them with.

Sorry for ending that sentence in a preposition.

I'll make it up to you by starting with the exciting STL world of containers.

Just when you thought things would get dull, we get to tackle containers!... which are basically what we've been covering...

Containers are simply means by which we refer to groups of objects while abiding by the "rules" of a given container.

So what are the rules of a container?

What are some containers we've discussed in class and by what rules should each abide?

So none of this is particularly new... in fact, it's kinda what we've been doign this whole quarter...

That said, we haven't closely examined the intricacies of some STL containers, so let's use vectors and lists as our examples for the next section or two:

#include <vector>

The vector container is just a dynamic array, which means we have random access to its elements plus the ability to resize it as we need.

What does it mean for a container to have random access?

It means that at any time, we can access elements at an arbitrary offset, similar to how pointers operate with random access (we can talk about pointers with any offset).

Let's look at some vector operations and see how they're similar and different from what we know:

Although we can't initialize vectors directly using the familiar array bracket notation (before C++11), we can initialize them from pointers designating a range in an array.

  int main () {
      int i[] = {2, 4, 6, 8};
      // Anyone catch this reference?
      // *tumbleweed*
      vector<int> victor(i, i+4);
  }

push_back( ... ) appends an element to the end of the vector. pop_back() removes the last element (and does NOT return it).

  int main () {
      vector<int> victor;
      victor.push_back(5);
      victor.push_back(10);
      victor.push_back(15);
      victor.pop_back();
      // Victor is now just: {5, 10}
  }

Nothing surprising there...

The front(), back() member functions return the items at the front and back of the vector, respectively.

  int main () {
      vector<int> victor;
      victor.push_back(5);
      victor.push_back(10);
      victor.push_back(15);
      cout << victor.front() << endl;
      cout << victor.back() << endl;
  }

We also said that vectors enjoy random access, so we have the following accessor functions at our disposal as well:

The at(n) accessor returns the element at index n in the vector.

  int main () {
      vector<int> victor;
      victor.push_back(5);
      victor.push_back(10);
      victor.push_back(15);
      // victor = {5, 10, 15}

      cout << victor.at(1) << endl;
      victor.at(1) = 20;
      // victor = {5, 20, 15}
  }

Vectors also overload the pointer offset notation, so we can replicate the above code by saying:

  int main () {
      vector<int> victor;
      victor.push_back(5);
      victor.push_back(10);
      victor.push_back(15);
      // victor = {5, 10, 15}

      cout << victor[1] << endl;
      victor[1] = 20;
      // victor = {5, 20, 15}
      cout << victor[1] << endl;
  }

The size() function returns how many elements are currently in the vector. The capacity function returns how much space the vector has reserved.

Remembering that vectors are dynamic arrays, will size() and capacity() always be equivalent? What can we say about their relationship?

No, they may not be equivalent, but we know that size() <= capacity()

  int main() {
      vector<int> victor;
      for (int i = 0; i < 100; i++) {
          victor.push_back(i);
      }
      cout << victor.size() << endl;
      cout << victor.capacity() << endl;
  }

[!] WARNING: Accessing or assigning to vector (let's say vector v) elements using v.at(n) or v[n] is only defined if n is currently less than v.size().

Does the following code exhibit any undefined behavior? If not, what will it print out?

  int main() {
      vector<int> victor;
      for (int i = 0; i < 100; i++) {
          victor.push_back(i);
      }
      cout << victor.size() << endl;
      cout << victor.capacity() << endl;
      victor[100] = 1;
      victor.push_back(2);
      cout << victor[100] << endl;
      cout << victor.size() << endl;
      cout << victor.capacity() << endl;
  }

So, remember, we can only reliably use the at and [] functions for indexes less than the size, not the capacity!

#include <list>

So, whereas vectors are the STL dynamic array container, lists are the STL doubly linked list.

There are some key differences between the interfaces of vectors and lists; let's look at some below:

We can add items to the front and back of a list using the push_front(...) and push_back(...) functions, respectively.

Why do we have the ability to push_front() with lists but not with vectors?

Insertion to the front of a linked list is easy and performed in constant time; it is non-trivial with arrays because we need to shift everything down!

Similarly, we can pop items from the front or back of a list using pop_front() and pop_back() respectively.

  int main () {
      list<string> less;
      less.push_back("Finding");
      less.push_back("Minotaurs");
      less.push_front("...Busy");
      less.pop_front();
      less.push_front(":D");
  }

We have a variety of accessor strategies for lists, two of which are to get references to the front and back via functions front() and back() respectively.

  int main () {
      list<string> less;
      less.push_back("LOST");
      less.push_back("IN");
      less.push_back("MAZE");
      less.back() = "SPACE";
      cout << less.front() << endl;
      cout << less.back() << endl;
  }

Remember! We *cannot* perform random access with linked lists. This means that lists do NOT have the at and [] functions.

So how can we access elements that aren't at the back or the front? Let's shift our discussion to iterators...

When we dealt with linked lists in the past, the way we would iterate through elements was through a Node pointer on which we could successively look at n->next;

With the STL list, however, we no longer have access to the internal representation of the Node, so how do we iterate?!

Iterators are STL *objects* (not pointers, necessarily) that refer to a position in some sort of sequential collection.

Iterators are objects specific to a particular collection, so lists have their own iterators, vectors have their own iterators, etc.

For the purposes of lists, iterators are somewhat analogous to our familiar Node pointers, but with several key differences.

Let's look at the specifics next:

Construction & Assignment

We can construct new Iterators for a collection via the syntax: collection<type>::iterator name;

So, to define a string iterator for a list, we'd say:

  list<string>::iterator iter;

Not very useful yet...

For *both vectors and lists* we can get an iterator at the position of the first or last element via the functions begin() and end() respectively.

So, let's make a couple iterators:

  int main () {
      list<string> less;
      less.push_back("Hey");
      less.push_back("Iterate");
      less.push_back("THIS!");
      list<string>::iterator b = less.begin();
      list<string>::iterator e = less.end();
  }

[!] WARNING: the end() iterator refers to the theoretical position *just past* the last element. Keep this in mind for the next sections.

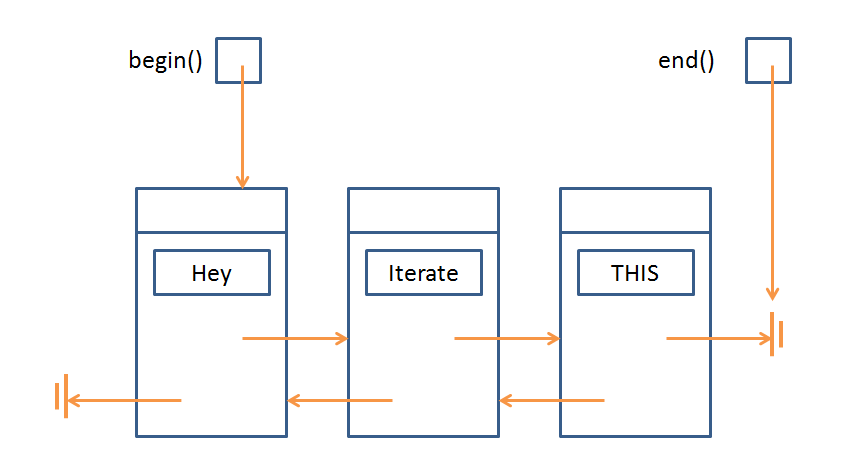

So, the current picture we have is:

Dereference

Iterators support the dereference operation (*), which functions just like pointer dereference, returning the value that the iterator points to in the container.

Will the following code compile? If so, what will it print?

  int main () {
      list<string> less;
      less.push_back("Hey");
      less.push_back("Iterate");
      less.push_back("THIS!");
      list<string>::iterator b = less.begin();
      list<string>::iterator e = less.end();
      cout << *b << endl;
  }

Will the following code compile? If so, what will it print?

  int main () {
      list<string> less;
      less.push_back("Hey");
      less.push_back("Iterate");
      less.push_back("THIS!");
      list<string>::iterator b = less.begin();
      list<string>::iterator e = less.end();
      cout << *e << endl;
  }

Always be careful with the iterator returned by end()!

Now, let's see how we can use iterators for something useful...

Increment & Decrement

Iterators support the increment (++) and decrement (--) operations when there is a legitimate position to iterate to in that direction.

So, just like we could never call n->next on a Node pointer that is equal to the nullptr, we can't perform decrement on the iterator equivalent with begin() nor increment on the iterator equivalent with end().

Will the following code compile? If so, what will it print?

  int main () {
      list<string> less;
      less.push_back("Hey");
      less.push_back("Iterate");
      less.push_back("THIS!");
      list<string>::iterator b = less.begin();
      list<string>::iterator e = less.end();

      // b--; BAD! Iterates off the beginning of the list
      // e++; BAD! Iterates off the end of the list

      b++;
      e--;
      cout << *b << endl;
      cout << *e << endl;
  }

We're almost done looking at the basic operations of iterators... I kinda promise...

Equivalence & Nonequivalence

We can compare two iterators to see if they refer to the same container element via the familiar equivalence (==) and nonequivalence (!=) operators.

This allows us to use iterators in loops!

  int main () {
      list<string> less;
      less.push_back("Hey");
      less.push_back("Iterate");
      less.push_back("THIS!");
      list<string>::iterator b = less.begin();
      list<string>::iterator e = less.end();

      // Print out the data at b, then increment
      // it until we reach the end of the list!
      while (b != e) {
          cout << *b++ << endl;
      }
  }

Iterator Trickz

You can use iterators as ranges for copying between collections.

Here, I'll choose to copy all of the contents of my list into a new vector, specifying the begin and end copy range as the full list (less.begin(), less.end())

  int main () {
      list<string> less;
      less.push_back("Cool");
      less.push_back("Copy");
      less.push_back("Bro");

      vector<string> v(less.begin(), less.end());
      vector<string>::iterator b = v.begin();
      vector<string>::iterator e = v.end();

      while (b != e) {
          cout << *b++ << endl;
      }
  }

Use the insert(iterator, value); function to insert a value at the position *just before* the given iterator.

  int main () {
      list<string> less;
      less.push_back("Cool");
      less.push_back("Insertion");
      less.push_back("Bro");

      list<string>::iterator b = less.begin();
      list<string>::iterator e = less.end();

      list<string>::iterator iter = less.begin();
      iter++;
      less.insert(iter, "HELP I'M TRAPPED IN A LIST");

      while (b != e) {
          cout << *b++ << endl;
      }
  }

Use the erase(iter) to erase a single iterator item, or erase(begin, end) to delete a range of items.

  int main () {
      list<string> less;
      less.push_back("Cool");
      less.push_back("Insertion");
      less.push_back("Bro");

      list<string>::iterator b = less.begin();
      list<string>::iterator e = less.end();

      list<string>::iterator iter = less.begin();
      iter++;
      less.erase(iter, e);

      while (b != e) {
          cout << *b++ << endl;
      }
  }

Some final notes that are just nice to know:

Assuming your iterators are still valid in a vector, subtraction (-) is well defined and acts as though the iterators represented their analogous indexes.

Most collections (at least list and vector) have a clear() function that simply removes all elements from them.

Dangers & Caveats

*VECTOR* iterators support random access because of the dynamic array indexing. *LIST* iterators do NOT!

This means that (++) and (--) are the only ways to traverse lists, but we can perform additions and subtractions to iterators in vectors:

  int main () {
      vector<string> v;
      v.push_back("Cool");
      v.push_back("Insertion");
      v.push_back("Bro");

      vector<string>::iterator b = v.begin();
      b += 2;
      cout << *b << endl;
  }

For this same reason, >, >=, <, and <= comparisons are valid for vector iterators but NOT list iterators!

One final warning before we move on from iterators...

Insertions and deletions on *vectors*, but not lists, will INVALIDATE any iterators defined on that vector.

Will the following code have any undefined behavior? If not, what will it print?

  int main () {
      vector<int> v;
      v.push_back(50);
      v.push_back(22);
      v.push_back(10);

      vector<int>::iterator b = v.begin();
      vector<int>::iterator e = v.end();
      for (int i = 0; i < 100; i++) {
          v.push_back(i);
      }
      while (b != e) {
          cout << *b++ << endl;
      }
  }

Why is this a problem?

Vectors are dynamic arrays, which means they might resize themselves as needed. Whenever this happens, the old array is deleted in favor of a new one, but the old iterators are not also updated, and so they refer to deallocated memory.

Motivating Example

Let's consider the binary search algorithm on a sorted vector (we'll look at sorting later; for now, just assume we're given a sorted vector).

Binary search says this: I'm going to be asked to find a value in some sorted collection, and rather than search linearly from the first element to the last for this requested value, I'm going to take advantage of the fact that the collection is sorted...

I'll do this by choosing a mid point index in the collection, ask if the target value is less than, greater than, or equal to the value at that index, and ignore the side that is no longer relevant. Rinse, repeat, until either I find the value or it's not in the collection.

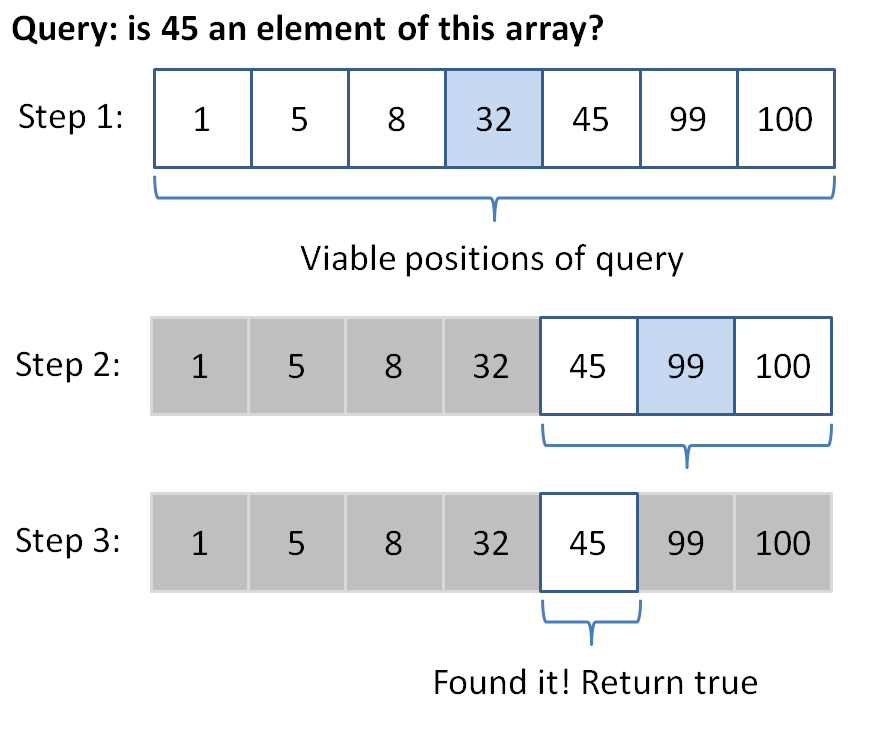

So how does that work? Let's look at an example: say I have a vector / array of ints: {1, 5, 8, 32, 45, 99, 100} and I want to know if 45 is an element.

Program binarySearch (which can, for the purposes of this exercise, assume sorted input), which searches for the given value in the given vector using iterators and the binary search algorithm described above.

  template<typename T>
  bool binarySearch(vector<T> v, T query) {
      // First, define our iterators on v
      // We'll narrow down the possible indexes of
      // our vector by shifting the minIndex right
      // and the maxIndex left, when appropriate
      typename vector<T>::iterator minIndex = v.begin(),
               maxIndex = v.end(),
               mid;

      // Keep looking as long as we haven't narrowed
      // down the results to nothing (hint: think
      // in terms of our iterators)
      while ( ??? ) {
          // Examine the midpoint element between the
          // minIndex and the maxIndex (remember, it's
          // an iterator on a vector!
          mid = minIndex + ???;

          // Is the element at mid our query? If so,
          // return true
          if ( ??? ) {
              return true;
          }

          // Otherwise, we can narrow our search; only look
          // to the left of the midpoint if our query is smaller
          // than the mid, and vice versa if query is larger
          // Hint: Think of squeezing the array on one side
          if ( *mid < query ) {
              minIndex = ???;
          } else {
              maxIndex = ???;
          }
      }

      // If we make it here, we never found the query
      return false;
  }

If everything went according to plan, the following code should output 1 0 1 0 (with newlines, of course):

  int main () {
      int i[] = {1, 5, 8, 32, 45, 99, 100};
      vector<int> v(i, i+7);

      cout << binarySearch(v, 45) << endl;
      cout << binarySearch(v, 42) << endl;

      vector<string> s;
      string query = "Eva";
      s.push_back("Andrew");
      s.push_back("Bobby");
      s.push_back("CyynthiaWithTwoYs");
      s.push_back("Daren");
      s.push_back("Eva");
      s.push_back("ForneyBecauseImMakingThis");
      s.push_back("ForneyBecauseWhyNot");
      s.push_back("ForneyToShowEvenNumber");

      cout << binarySearch(s, query) << endl;
      cout << binarySearch(s, query + "NOT") << endl;
  }

Cool right? Our function works with both ints and strings, and any other type capable of comparisons!

Remember: The above algorithm assumes the input data is sorted... we'll look at sorting later!

Try repeating the above binary search algorithm recursively using the code skeleton below:

  template<typename T, typename Iter>
  bool binarySearchExec(vector<T> v, T& query,
                        Iter minIndex, Iter maxIndex) {

      // Base case: the end iterator is before the begin
      // iterator
      if ( ??? ) {
          return false;
      }

      // Otherwise, find the midpoint:
      Iter mid = minIndex + ((maxIndex - minIndex) / 2);

      // Base case: we've found our query!
      if (*mid == query) {
          return true;
      }

      // Recursive cases:
      // Otherwise, we need to keep "squeezing" our iterator
      // bounds:

      // If our query is greater than the mid, recusively
      // squeeze our min index
      if (query > *mid) {
          return ???;
      } else {
          return ???;
      }
  }

  template<typename T>
  bool binarySearchRecursive(vector<T> v, T query) {
      return binarySearchExec(v, query, v.begin(), v.end());
  }

We can then test against the same main function using our new recursive version, expecting 1, 0, 1, 0 once more:

  int main () {
      int i[] = {1, 5, 8, 32, 45, 99, 100};
      vector<int> v(i, i+7);

      cout << binarySearchRecursive(v, 45) << endl;
      cout << binarySearchRecursive(v, 42) << endl;

      vector<string> s;
      string query = "Eva";
      s.push_back("Andrew");
      s.push_back("Bobby");
      s.push_back("CyynthiaWithTwoYs");
      s.push_back("Daren");
      s.push_back("Eva");
      s.push_back("ForneyBecauseImMakingThis");
      s.push_back("ForneyBecauseWhyNot");
      s.push_back("ForneyToShowEvenNumber");

      cout << binarySearchRecursive(s, query) << endl;
      cout << binarySearchRecursive(s, query + "NOT") << endl;
  }

In our example above, we templated a function to behave correctly across a variety of types, but the semantics of our code are fixed.

By that I mean that every time we run binarySearch as coded above, it will perform a binary search algorithm!

But what if I wanted to create sort of an... algorithm template, whereby I can perform similar steps while eliciting different behaviors based on my situational needs?

An algorithm describes a series of steps to take to accomplish an outcome, which can be specialized for a particular scenario.

OK, so what does that mean?

Let's say I wanted to find the maximum int in a list. I might code the following:

  int maximum(list<int> listy) {
      list<int>::iterator it = listy.begin();
      if (it == listy.end()) {
          return NULL;
      }

      int currentMax = *it++;
      while (it != listy.end()) {
          if (*it > currentMax) {
              currentMax = *it;
          }
          it++;
      }

      return currentMax;
  }

You can test it if you want...

  int main () {
      int i[] = {50, 29, 100, 72};
      list<int> listy(i, i+4);

      cout << maximum(listy) << endl;
  }

But now, what if I wanted to find the minimum in a list?

Am I to write an entirely new function, or can I somehow use elements of the algorithm I described above, but change the if statement in the while loop?

Well, Andrew, obviously the latter; stop with the leading questions.

Here's how to do it: I'll begin by creating two functions: greaterThan and lessThan, and then rename my algorithm function: lookAtEach (as in, look at each element and then return something)

  bool greaterThan (int a, int b) {
      return (a > b);
  }

  bool lessThan (int a, int b) {
      return (a < b);
  }

Now here's the magic... I'll tell my lookAtEach function that I want it to maintain the behavior of looking at each element in the collection I pass in, but then return some element by the criteria of my choosing.

How do I choose that criteria? Well, in some cases, I want to find the max, and in others I want to find the min, so I'll just pass in those criteria functions as parameters!

You can use templates to pass pointers to functions as parameters into another function, and call the parameter function from within the body. This allows you to have an algorithm with a generic function call!

How can we pass in a pointer to a function? I thought pointers were only for variables?

Don't forget, our running code is all in memory, which is all addressed, so even functions have a starting address in memory... which we can pass along!

So here's how I revise lookAtEach:

  // [!] New template type to indicate the
  // generic function return type
  template<typename Function>
  // [!] Add Function f as a parameter
  int lookAtEach(list<int> listy, Function f) {
      list<int>::iterator it = listy.begin();

      int currentMax = *it++;
      while (it != listy.end()) {
          // [!] Call f with my two compared
          // values so it serves as my
          // selection criteria
          if (f(*it, currentMax)) {
              currentMax = *it;
          }
          it++;
      }

      return currentMax;
  }

Now, depending on whether I want the max or the min, I can just pass in the function pointer I want!

  int main () {
      int i[] = {50, 29, 100, 72};
      list<int> listy(i, i+4);

      cout << lookAtEach(listy, greaterThan) << endl;
      cout << lookAtEach(listy, lessThan) << endl;
  }

STL Algorithms

So, naturally, there a variety of these common behavior functions that are implemented in the algorithms package of the STL.

There are many, but we can look at a couple. (make sure you #include <algorithm>)

The find_if(iterator1, iterator2, criteriaFunc) algorithm finds (iterator pointing to) the first element between iterators 1 and 2 that satisfies the criteriaFunc.

What will the following code print out?

  bool isNegative (int i) {
      return i < 0;
  }

  int main () {
      int i[] = {-10, 22, 50, 29, 100, 72, -5, 17};
      list<int> listy(i, i+8);
      list<int>::iterator b = listy.begin();
      list<int>::iterator e = listy.end();

      cout << *find_if(++b, e, isNegative) << endl;
  }

How about 2 at a time?

The for_each(iterator1, iterator2, func) algorithm calls func with every element between iterator1 and iterator2, one at a time.

The replace(iterator1, iterator2, oldVal, newVal) algorithm replaces all instances of oldVal with newVal in range iterator1 to iterator2.

What will the following code print out?

  // One of my better puns
  void prInt (int i) {
      cout << i << " ";
  }

  int main () {
      int i[] = {22, -50, 17, 25, 22, 22, 19};
      list<int> listy(i, i+7);
      list<int>::iterator b = listy.begin();
      list<int>::iterator e = listy.end();

      replace(b, e, 22, 0);
      for_each(b, e, prInt);
  }

So we've just seen some common algorithms that programmers of yore have abstracted for us, but now a new question crops up: is one algorithm better than another?

Perhaps we need to take a step back... what does it mean for an algorithm to be better than another?

Algorithm complexity is often measured in terms of the growth rate of the time (and sometimes space in memory) it takes to successfully solve a problem based on the size of its input.

So, given the same input and the same task (sort, search, replace, etc.), we would like a way to judge which of some set of algorithms do it the best.

This is not only useful for comparing algorithm efficiency, but also for determining how well a single algorithm scales with large input. Let's look at speed first:

Is it a viable test for speed to run two algorithms on two computers and simply time each to see which is faster?

Not in general! Differences in hardware, running processes, and other differences between platforms can confound a speed test.

OK, so we want some sort of evaluation that is hardware-agnostic.

Suggest another way to measure the speed of an algorithm.

Count the number of statements that algorithm executes, which translate to machine instructions, which translate to time.

Alright, let's look at a simple algorithm then:

  // Returns true iff the dividend is evenly divided
  // by the divisor
  bool divisibleBy (int dividend, int divisor) {
      return (dividend % divisor == 0);
  }

  int main () {
      cout << divisibleBy(5, 2) << endl;
      cout << divisibleBy(9, 3) << endl;
      cout << divisibleBy(500, 200) << endl;
      cout << divisibleBy(900, 300) << endl;
      cout << divisibleBy(50000, 20000) << endl;
      cout << divisibleBy(90000, 30000) << endl;
  }

Does the algorithm take more steps or execute more statements the larger the input gets?

No! Regardless of how large the input gets, i.e., independent of the input, this algorithm takes the same number of steps: a single modulus calculation.

"Andrew, that's possibly the worst graph I've ever seen. It is literally a box."

It's to illustrate a point! Wait til you see the next one...

In any event, we see that regardless of how large the input gets, we still take the same amount of steps.

To represent a tight bound of complexity, it is common to use Big O Notation, designated O(N) where N is some growth rate.

Big O notation says that, "As this algorithm's input gets larger and larger until infinity, we can predict that its pattern of growth will approximately follow some function of N."

Since we don't really care about small input (computers will handle small jobs quickly regardless of how good an algorithm is), we speak of efficiency at the asymptotic level.

Asymptotic analysis means we're looking at how well an algorithm performs as the size of its input reaches infinity.

So, from our divisbleBy example, we saw that regardless of the input size, it still only took 1 step. So, we'd say that had a time complexity O(1).

A constant time complexity is an algorithm that is independent of the input size. We represent this as O(1).

Let's take a quick detour into Big O notation before we continue.

We said that our analysis is on the asymptotic case where our input is infinitely large.

We could say that as our data size, n -> infinity, then a constant time algorithm will be unchanged. i.e.:

  lim 1 = 1
  n -> infinity

Now, say we observed an algorithm that takes the following number of steps:

  5n + 10000

Even though this algorithm takes 10005 steps for an input size of 1 (n = 1), look what happens as n goes to infinity:

  [n = 100]       500 + 10000
  [n = 10000]     50000 + 10000
  [n = 100000000] 500000000 + 10000

The larger n gets, the less significant that extra, constant 10000 steps appears to be.

So, when we measure growth rates in the form of Big O notation, we only care about the highest degree term of the polynomial. We don't even care about coefficients at the asymptotic level.

Determine the Big O equivalents of the following expressions:

  1) 500
  2) 2000n + 1
  3) 5000n + 2000n
  4) 3n^2 + 2n + 10000

Answers here.

1) O(1)
2) O(n)
3) O(n)
4) O(n^2)

Now that we know how to represent complexities, let's talk about how to discover them from a code segment.

Here's my heuristic for examining complexity:

1. Start at the top of the function or code segment of interest.

2. Continue downward until you find a statement that relies on the size of the input (usually a loop or function call).

3. Explore the body of that loop or function call, moving downward into scopes until you reach a constant time statement with no lower scopes that rely on the input size.

4. Work your way back out, at each stage multiplying your "running complexity total" by however much the last scope depended on the size of the input.

5. Whenever you exit a scope and then move down into another, add to your "running complexity total" instead of multiplying.

6. That algorithm's complexity is the highest degree polynomial term that you encountered on your travels.

This gives a basic algorithm for finding the complexity of an algorith O_O

Shall we give it a try? Let's look at this simple indexOf function:

  // Returns the location of the query int
  // within the given int array
  int indexOf (int i[], int size, int query) {
      for (int index = 0; index < size; index++) {
          if (i[index] == query) {
              return index;
          }
      }
      return -1;
  }

  int main () {
      int i[] = {5, 17, 22, -10, 0, 0, 28};
      cout << indexOf(i, 7, 0) << endl;
      cout << indexOf(i, 7, 1) << endl;
  }

Why don't we assess the time complexity of the indexOf function?

Let's follow the steps; I'll comment here:

  int indexOf (int i[], int size, int query) {
      // (1) Starting at top of function of interest
      // (2) Continue until I find a statement that relies
      //     on the size of the input (an array in this case)
      // [!] Found it! I have a for loop that relies on the
      //     array size
      for (int index = 0; index < size; index++) {
          // (3) Explore the body of that loop until I find
          //     a statement with constant time complexity,
          //     with no lower scopes that rely on the input
          //     size
          // [!] Found it! This comparison and return statement
          //     are both constant time, with no lower scopes
          //     that rely on input size
          if (i[index] == query) {
              return index;
          }
          // [!] At this point, I've only performed a constant
          //     time operation inside of the loop, so my
          //     running complexity total is 1
      }
      // 4) I've worked my way outside of that loop, which
      //    relied on the size of the input array. In fact,
      //    that loop goes through all n elements, so I can
      //    multiply my running complexity total by n:
      //    1 * n = n

      // [!] End of function! The highest degree I encountered
      //     was n, so my complexity is O(n)
      return -1;
  }

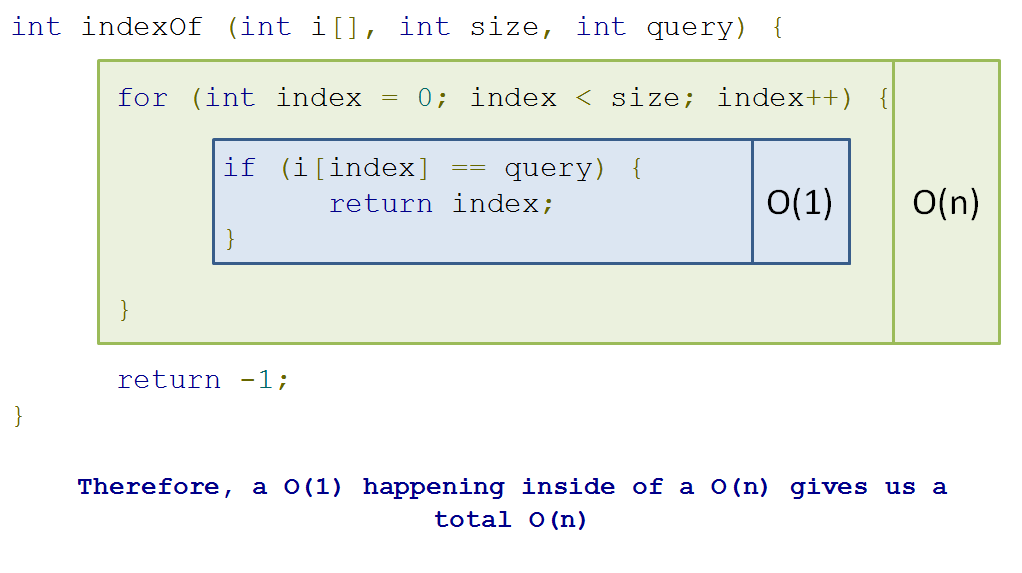

Pictorially, we can see this as:

So in this case, we have a linear relationship between the size of our input and the number of steps our algorithm takes.

A linear time complexity is designated O(n), with an (approximately) equal number of steps added for every element added.

Why don't we do another one?

  void hillPrint (int arr[], int size) {
      for (int i = 0; i < size; i++) {
          cout << arr[i] << " ";
      }
      cout << endl;
      for (int j = size - 1; j >= 0; j--) {
          cout << arr[j] << " ";
      }
      cout << endl;
  }

  int main () {
      int i[] = {10, 20, 30, 40, 50};
      hillPrint(i, 5);
  }

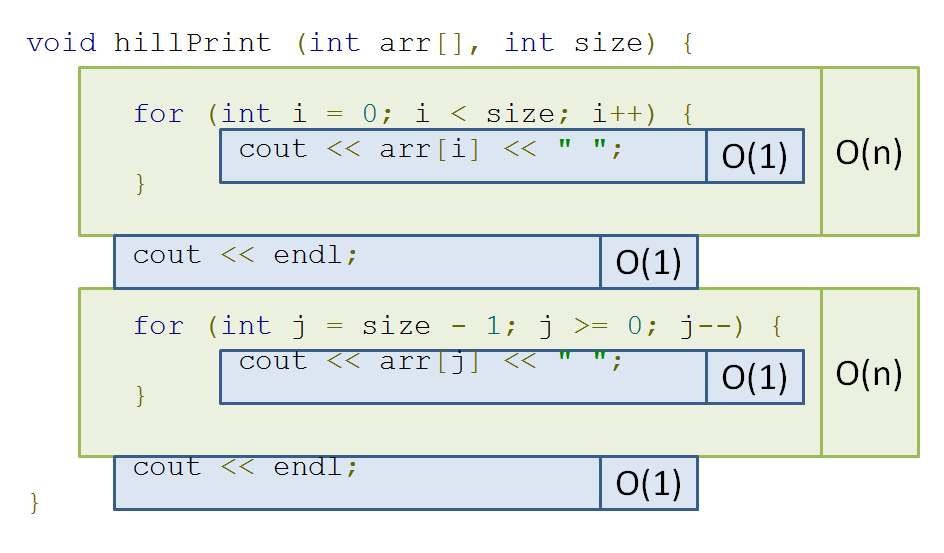

Let's look at it pictorially again:

If you trace my pseudo-algorithm from before, you'll find that you end up with O(n + n) = O(2n) -> O(n). So still linear!

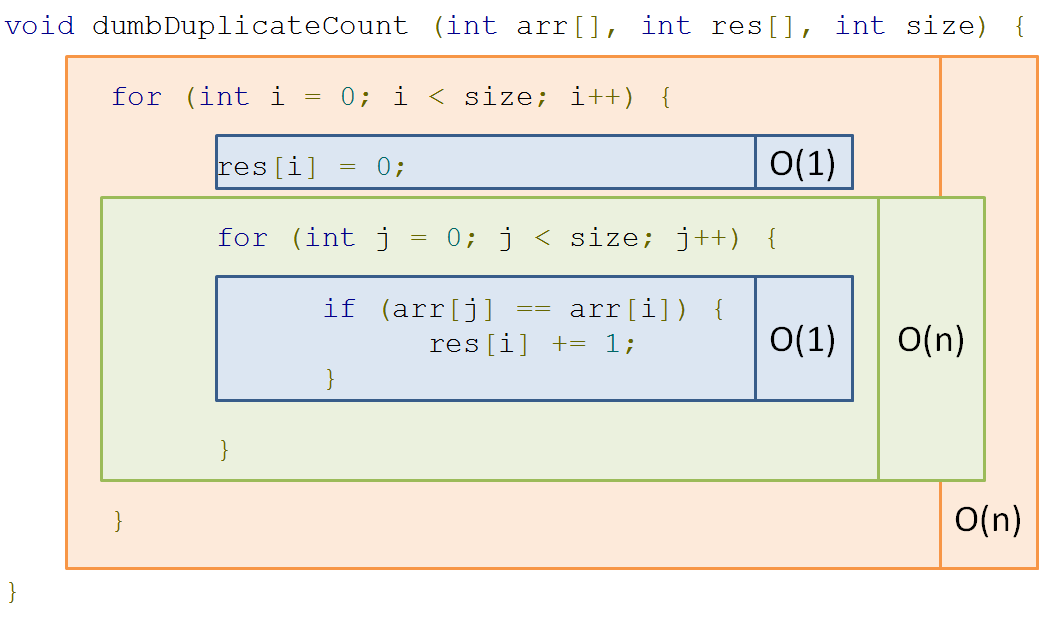

Here's another...

  // res[i] = number of instances of arr[i] in arr
  void dumbDuplicateCount (int arr[], int res[], int size) {
      for (int i = 0; i < size; i++) {
          res[i] = 0;
          for (int j = 0; j < size; j++) {
              if (arr[j] == arr[i]) {
                  res[i] += 1;
              }
          }
      }
  }

  int main () {
      int i[] = {1, 2, 2, 2, 3, 4, 3};
      int res[7];
      dumbDuplicateCount(i, res, 7);
      // res is now: {1, 3, 3, 3, 2, 1, 2}
  }

Once more, pictorially:

So here, we see that a loop dependent on n nested inside another loop dependent on n gives us quadratic time: O(n^2)

Polynomial time is represented by O(n^k) for some constant k; O(n^2) is a special case of polynomial time called quadratic time.

Yikes! That could get out of hand really quickly!

Here's another interesting example...

  bool hasDuplicate (int arr[], int size) {
      for (int i = 0; i < size; i++) {
          // [!] Inner loop depends on outer loop,
          // which depends on input size...
          for (int j = i + 1; j < size; j++) {
              if (arr[j] == arr[i]) {
                  return true;
              }
          }
      }
      return false;
  }

  int main () {
      int i[] = {1, 2, 2, 2, 3, 4, 3};
      int j[] = {1, 2, 3, 4, 5, 6, 7};
      cout << hasDuplicate(i, 7) << endl;
      cout << hasDuplicate(j, 7) << endl;
  }

Observe that this algorithm is very similar to our last quadratic one, with one key exception:

Instead of both loops running all n times, the inner loop only runs i times, where i is the current value of the outer loop iteration.

Prove that the hasDuplicate function operates in quadratic time, O(n^2)

Click here for a sketched proof.

Let's look at one final class of complexities:

Remember binary search from earlier in the lecture? (I hope)

Let's see our example again:

By what factor are we reducing our search space with each step of binary search (hint: it's in the name)?

A factor of 2, since we're halving the potential locations of our query with each step!

This algorithm belongs to a class of algorithms where we start with some N elements in our search space, and with each step reduce the search space by some factor.

A logarithmic time complexity enjoys efficiency by decreasing the operations required at each step with every step taken.

We can take our binary search for example.

With every step binary search takes, we see that we reduce the search space of our previous step by half, giving us a growth curve looking like:

OK, so that's a lousy looking curve, but you get the idea!

Logarithmic curves do NOT grow as quickly as linear ones, so any time you can reduce the search space of your problems in logarithmic time, you try to do so!

We'll see many examples of logarithmic time complexities in next week's lecture.

Whew! Congratulations, you can now understand this XKCD, a reference to the supposedly intractable "Traveling Salesman" problem, which asks for the most efficient route between a set of geographic locations (like a salesman attempting to plot the fastest route going door-to-door selling a product):

Someone made a tiny flaw in the following code for indexOf that causes it to blow up. Can you find it?

  // Returns a string vector iterator pointing to
  // the first element in c that matches the query
  // string
  vector<string>::iterator indexOf(vector<string> c, string query) {

      for (vector<string>::iterator it = c.begin(); it != c.end(); it++) {
          if (*it == query) {
              return it;
          }
      }

      return c.end();
  }

  int main () {
      string s[] = {"algorithms", "scare", "me", ":("};
      vector<string> vs(s, s+3);
      string query = "me";
      cout << *indexOf(vs, query) << endl;
  }

Challenge

What is the time complexity of the following algorithm?

  int main () {
      int N = 100;
      list<int> s;
      for (int k = 1; k <= N; k++) {
          s.push_back(10*k);
      }

      vector<int> t;
      for (list<int>::iterator p = s.begin(); p != s.end(); p = s.erase(p)) {
          t.insert(t.begin(), *p);
      }
  }
